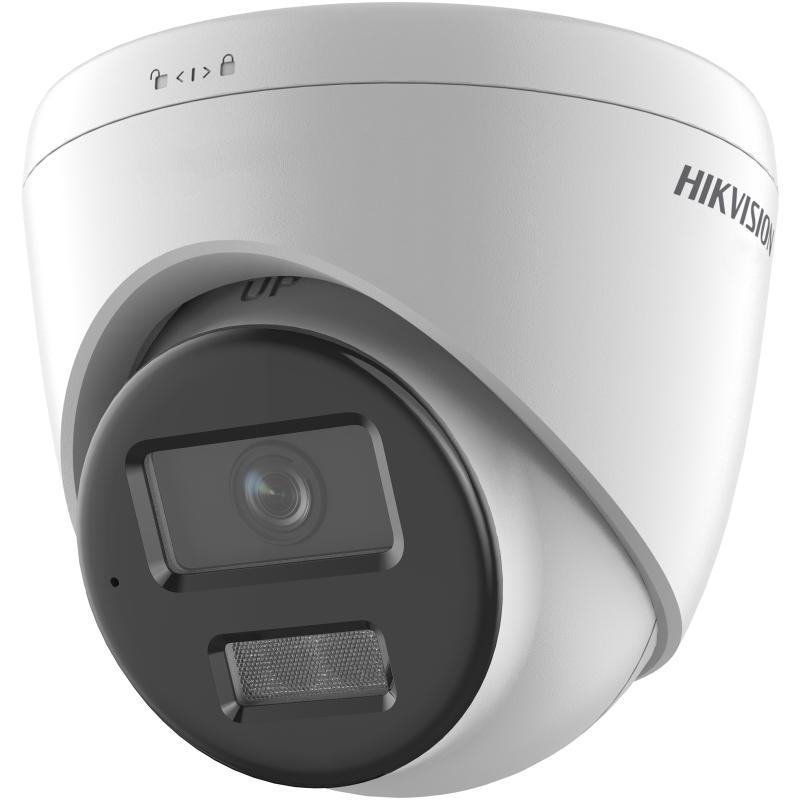

DS-2CD1341G2-LIUF 4 MP Smart Hybrid Light Fixed Turret Network Kamera

• High quality imaging with 4 MP resolution
• Support Human Detection
• Efficient H.265+ compression technology
• Smart Hybrid Light: advanced technology with long range coverage
• Built-in microphone for real-time audio security
• -F model supports on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°

  4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°

• Lens MountM12
• Iris TypeFixed
• ApertureF2.2
• Depth of Field

  2.8 mm: 0.9 m to ∞

  4 mm: 1.1 m to ∞

• DORI
• DORI

  2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m

  4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m

• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 20 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz:

  20 fps (2560 × 1440),

  25 fps (1920 × 1080, 1280 × 720)

  60 Hz:

  20 fps (2560 × 1440),

  24 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360)

  60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region of Interest (ROI)1 fixed region for main stream

• Audio
• Audio TypeMono sound
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz
• Audio CompressionG.711ulaw/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

• Network
• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
• APIONVIF (Profile S, Profile T, Profile G (only -F model supports Profile G)),ISAPI,SDK
• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live ViewUp to 6 channels
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11

• Image
• Wide Dynamic Range (WDR)Digital WDR
• SNR≥ 52 dB
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask1 programmable polygon privacy mask

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  -F model: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Built-in MicrophoneYes,1 built-in microphone
• Reset Key-F model supports

• Event
• Basic EventMotion detection (support alarm triggering by specified target type (human)), exception
• LinkageUpload to memory card (-F model supports), send email, notify surveillance center, trigger recording (-F model supports), trigger capture

• General
• Power

  LIU model:

  12 VDC ± 25%, 0.42 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

  PoE: IEEE 802.3af, Class 0, max. 6.5 W

  LIUF model:

  12 VDC ± 25%, 0.42 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 6.5 W

• MaterialMetal & Plastic
• DimensionØ110 mm × 89.2 mm (Ø4.3" × 3.5")
• Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Approx. 345 g (0.7 lb.)
• With Package WeightApprox. 588 g (1.2 lb.)
• Storage Conditions-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

• Approval
• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  KC: KN32: 2015, KN35: 2015

• Safety

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
